CassetteAnthracite / White -
11 sizes2-6 m -
OptionalWind sensor -
FabricGrey / Beige
Sale Title
Custom description for awnings (set in the Shopify Customizer)
| Design | |
|---|---|
| Housing construction | Fully enclosed cassette |
| Frame colour options | Anthracite / White |
| Mounting options | Wall or ceiling |
| Approved mounting surfaces |
Standard: concrete, timber frame/stud, render over timber, timber rafters, steel, solid brick/clinker/cavity masonry, sand-lime brick, hollow block/Poroton, ETICS/EIFS Special care: brick veneer on timber, AAC/Ytong, hollow-core concrete, natural stone |
| Operation | Remote control, hand crank in event of power outage |
| Dimensions | |
|---|---|
| Total product weight | 30 kg to 88 kg (incl. brackets) |
| Cassette width options | 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 5 m, 6 m |
| Cassette height (closed) | 150 mm |
| Cassette depth (closed) | 222 mm |
| Recommended mounting height | 2.5 to 3.5 metres |
| Minimum installation height | 20 cm above door or window |
| Projection length | 1.5 m, 2 m, 2.5 m and 3.0 m |
| Awning extension angle | 5° to 25°, adjustable |
| Materials | |
|---|---|
| Cassette | High-quality aluminium profile 6063-T5 |
| Arm cables | Stainless steel 304 (plastic-coated) |
| Brackets, hinges | Hot-dip galvanised Q235 carbon steel |
| Fabric material | 280 g AuroWeave™ PU-coated polyester |
| Fade resistance | Level 4 |
| Rust resistant | Yes |
| Fabric | |
|---|---|
| UV protection | UPF 50+ (blocks over 98% of harmful UV rays) |
| UV test duration | 400-hour Xenon Arc test |
| Fabric warranty | 2 years (AuroWeave™) |
| Performance | |
|---|---|
| Lifespan | 20 years of standard use |
| Speed | 60 seconds full open/close cycle |
| Wind resistance | Class 2 (29-38 km/h) |
| Rain resistance | EN 20811 |
| Weather sensing | Optional wind sensor for automatic retraction |
| Lighting | |
|---|---|
| Integrated | LED strip (DC24V COB, 320 D/m) |
| Dimmable | Yes |
| Max lumens | ~430 lumens/m |
| Colour temperature | 3000K - warm white |
| Operation | Remote control included |
| Electrical | |
|---|---|
| Power requirement | 230V / 50Hz |
| Plug type | Type G |
| Cable exit point | Left (facing house wall) |
| Cable length | 7.5 m |
| Weather rating | IPX4 |
| Delivery | |
|---|---|
| Shipping | Free shipping on all orders |
| Number of packages | 2 (1x awning pre-assembled, 1x mounting bracket set) |
| Product weight | 2.0–4.0 m: 30–67 kg (2 people) 5.0–6.0 m: 72–88 kg (3 people) Bracket carton: +5–12 kg |
| Installation | |
|---|---|
| Difficulty | Beginner-friendly |
| Installation time | 1 hour |
| Recommended crew size | 2-3 |
| Tools/hardware included | Wall or ceiling brackets are included. Fixings and spacers are not included. |
| Tools required | Drill, drill bit suited to the wall type, spanner (19 mm for M12, 17 mm for M10), 6 mm and 5 mm hex/Allen keys, spirit level, 2 ladders, tape measure. Max fastener size: M12, minimum: M10 (washer required). |
| Professional installation | Optional |
| Surface restrictions | Plasterboard/drywall (wall or ceiling): do not mount directly. No load-bearing capacity. If drywall is present, locate the structural stud or joist behind it and fix into that. |
| Warranty | |
|---|---|
| Warranty term | Component-based / 10-year cassette |
| Warranty coverage | Aluminium cassette - 10 years Motor - 5 years Arms/mechanism - 5 years Fabric (AuroWeave™) - 2 years Electronics - 2 years |
Enjoy your outdoor space for longer with a PERGOLUX motorised retractable awning. Perfect for patios, decks and balconies, it can help reduce the temperature beneath the awning by up to 10°C on hot days, while integrated LED lighting lets you make the most of your outdoor area well into the evening.
The motorised full-cassette awning fully protects the fabric and mechanism from winter moisture, dirt, and UV rays when retracted. In operation, it opens and closes whisper-quiet — no squeaking, sagging, or scraping.
Made from 280g/m² AuroWeave™ polyester fabric with a durable PU coating and UPF 50+ protection, the canopy blocks up to 98% of harmful UV rays while still allowing natural daylight to filter through. Its sleek Scandinavian design and clean, screw-free aluminium cassette complements both modern and traditional UK homes.
Built with high-strength 6063-T5 powder-coated aluminium and 304 stainless steel components, PERGOLUX awnings are engineered for long-lasting performance. Tested for more than 3,000 opening and closing cycles, they offer exceptional durability, Wind Resistance Class 2 (EN 13561) certification, and IPX4 weather protection for reliable everyday outdoor use.
20+ years of engineering experience, direct-to-consumer pricing, and zero compromises. That's the PERGOLUX standard — now in our awning too.
Exceptional value for money is part of our DNA. By designing smarter, manufacturing at scale, and selling directly to homeowners, we deliver premium outdoor products with exceptional quality and value.
Thoughtfully designed for easy DIY installation, so you can get set up with confidence.
Certified UPF 50+ protection blocks 98% of UV rays
Built-in LED lighting for longer evenings outside
Mould resistant: breathable, water-repellent coating & full cassette design
Fully enclosed cassette: weatherproof and sleek
Whisper-quiet motor with smooth operation.
More shade with an adjustable tilt angle of 5°–25°
Optional Wind Sensor with Auto-Retract
Premium Retractable Awning for Patio & Balcony: High-End Design, Easy DIY Assembly

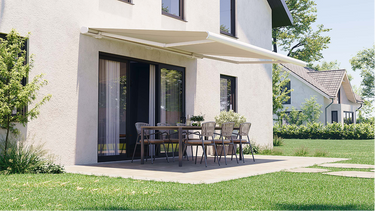

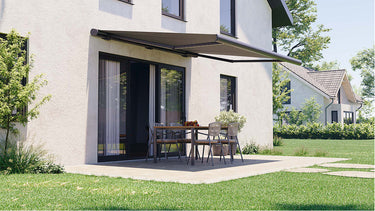

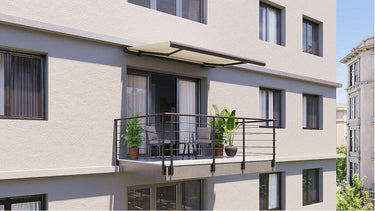

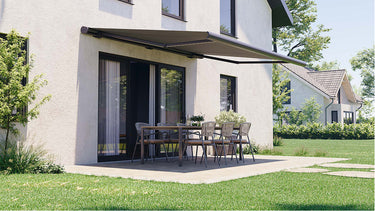

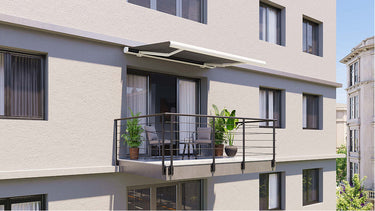

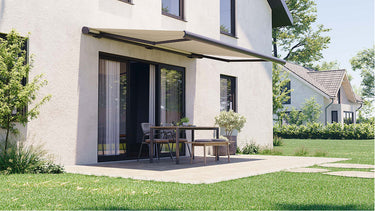

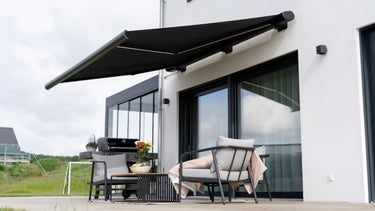

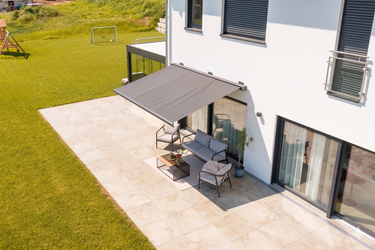

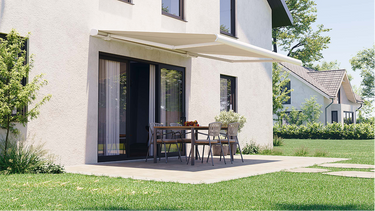

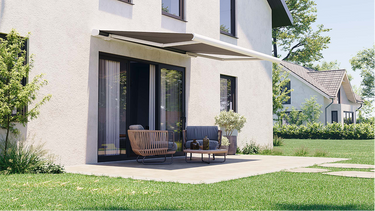

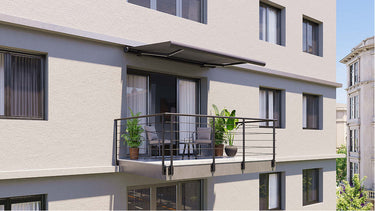

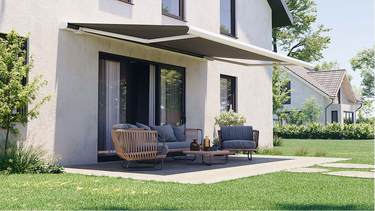

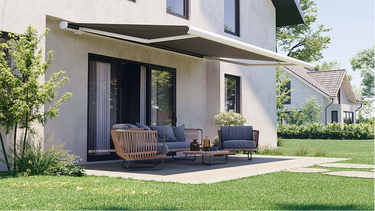

The PERGOLUX Awning is a fully enclosed electric cassette awning for homeowners who won't compromise on design or quality. It combines the quality of expensive premium awnings with the best price-to-performance ratio on the market.
- Lab-tested for over 3,000 opening and closing cycles – equivalent to around 20 years of regular use
- Integrated dimmable LED lighting
- Remote-controlled arms and manually adjustable pitch angle
- Whisper-quiet operation
Over 100,000 homeowners have already upgraded their outdoor spaces with PERGOLUX.

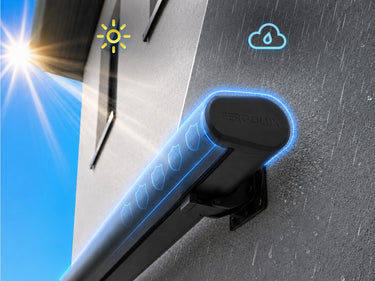

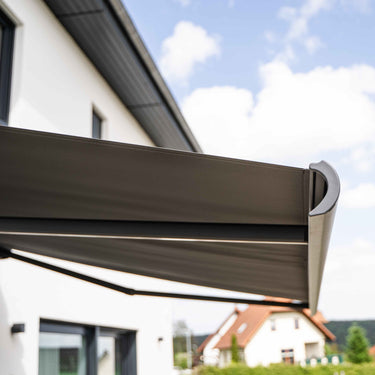

Rust- and Mould-Resistant Construction with 6063-T5 Aluminium & Full Cassette Protection

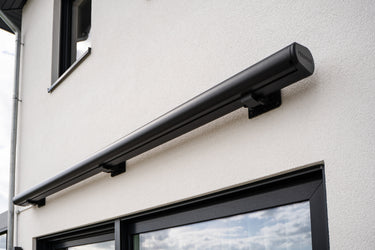

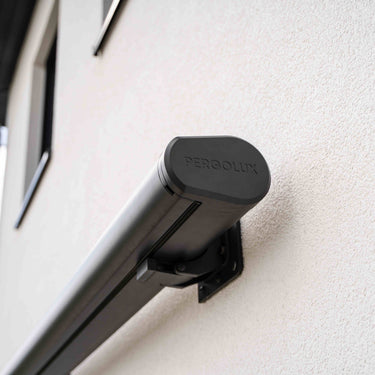

The full cassette design protects the awning and extends its lifespan.
When retracted, the fabric and mechanism disappear completely into a waterproof housing made of high-quality 6063-T5 aluminium.
- Housing reliably protects against moisture, dust, and insects
- Prevents UV damage to the fabric and uneven fading
- No weak plastic parts, no mixed materials
- Rust- and corrosion-resistant
- Scratch-resistant powder coating by Akzo Nobel®
Simply rinse clean with a garden hose, helping your awning run as smoothly years from now as it did on day one.

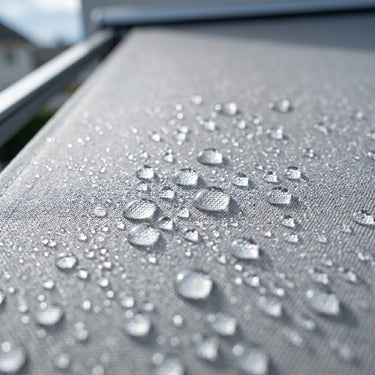

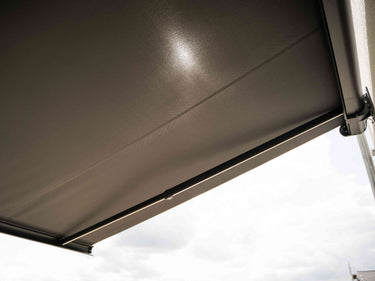

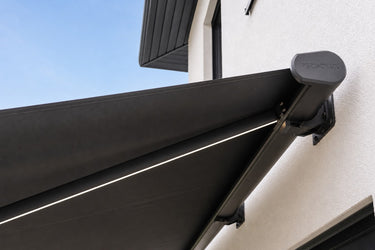

Cooling Heat Protection with PU-Coated UPF 50+ AuroWeave™ Fabric
The premium look of classic awning fabric – without the risk of mould or water pooling. The awning fabric is made of breathable 8.3 oz/yd² PERGOLUX AuroWeave™ polyester. A special polyurethane (PU) coating ensures an especially long lifespan.
- Lowers the temperature underneath by up to 10°C
- Water-repellent in light rain
- UPF 50+ certified – blocks 98% of UV rays
- Odour-, mould-, and fade-resistant (Colour Fastness Level 4)
- Stays taut – no water pooling
- Easy to clean by rinsing
- Lets soft, filtered daylight through
- High-quality canvas look
Lab-tested with 400 hours of extreme Xenon-arc radiation – proof that the fabric withstands even the most intense sun exposure.

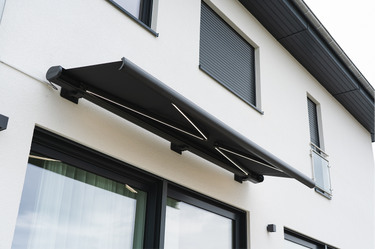

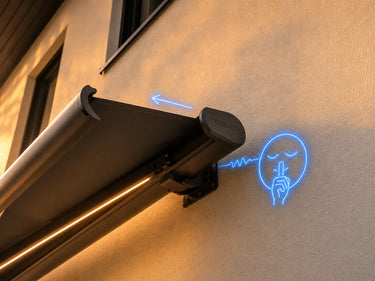

Whisper-Quiet Motor and 304 Stainless Steel Arm Cables
Open and close your awning conveniently at the touch of a button. The two folding arms operate with internal 304 stainless steel cables in a PVC sheath. Powered by a high-torque radio motor with two-way communication and an ergonomic remote control.
- No chains that can squeak, rust, or snap
- Simple one-touch operation
- Smooth, even motion
- Lab-tested for over 3,000 opening and closing cycles
- Remote control range up to 65 ft
- No re-greasing, no maintenance
- Optional: wind sensor automatically retracts the awning in wind or heavy rain
Quiet operation, easy to control – from the living room or from outside.

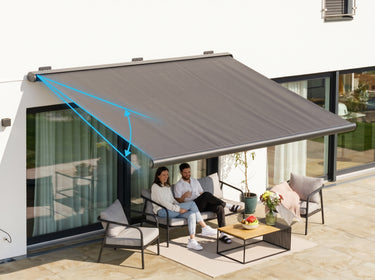

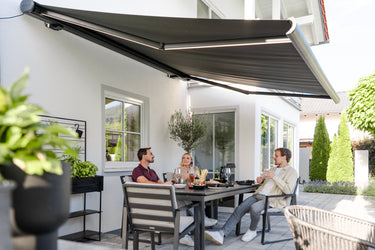

Control Shade and Light – by Adjusting the Pitch Angle or with the Integrated Dimmable LED Strips
More comfort on your patio. Hot-dip galvanized precision hinges allow manual pitch adjustment – for the perfect shade angle even in the late afternoon. Integrated chip-on-board (COB) LED strips in the arms provide atmospheric lighting.
- Adjustable pitch angle from 5° to 25°
- Rust- and corrosion-resistant hinges
- High-quality LEDs for an even, continuous band of light
- Continuously dimmable to set the right mood
- No special wiring needed
More time outdoors – during sunny midday hours and late into the night.

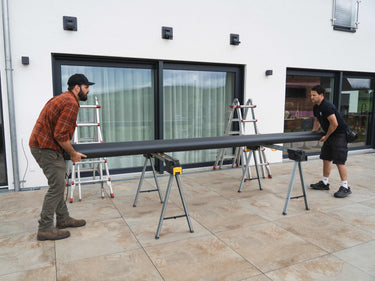

The Support You Need for Professional or DIY Installation

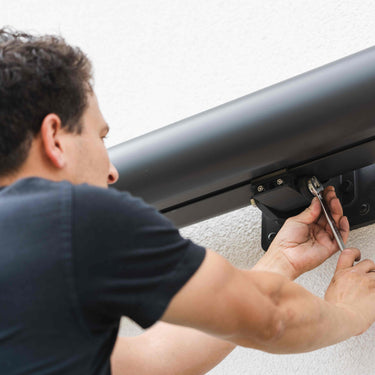

Install your awning within an hour. The awning is designed so two people can install it in an hour – even without prior experience. No electrician needed.
And if a question comes up: our support team is available via our online Help Centre.
DIY-Assembly so simple, anyone can do it
So simple, even LEGO would be jealous. Our awning can be assembled by 2-3 people in an hour, no expertise required. So your outdoor space is ready to go for the sunny days ahead.
If you'd rather skip the effort, we've partnered with Simplee, to offer professional installation thats reliable, safe, and done exactly to your specifications. Just add professional installation to your cart along with your awning.
Download the assembly guide as a PDF.
Still have questions? Check out our installation FAQs.
Looking for professional installation? Our trusted installation partners operate across all of Mainland UK. Contact us to check availability or just select it as an add-on in the awning configurator. After purchase, our installation partner will reach out to schedule a time with you.
Technical Details
| Design | |
|---|---|
| Housing construction | Fully enclosed cassette |
| Frame colour options | Anthracite / White |
| Mounting options | Wall or ceiling |
| Approved mounting surfaces |
Standard: concrete, timber frame/stud, render over timber, timber rafters, steel, solid brick/clinker/cavity masonry, sand-lime brick, hollow block/Poroton, ETICS/EIFS Special care: brick veneer on timber, AAC/Ytong, hollow-core concrete, natural stone |
| Operation | Remote control, hand crank in event of power outage |
| Dimensions | |
|---|---|
| Total product weight | 30 kg to 88 kg (incl. brackets) |
| Cassette width options | 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 5 m, 6 m |
| Cassette height (closed) | 150 mm |
| Cassette depth (closed) | 222 mm |
| Recommended mounting height | 2.5 to 3.5 metres |
| Minimum installation height | 20 cm above door or window |
| Projection length | 1.5 m, 2 m, 2.5 m and 3.0 m |
| Awning extension angle | 5° to 25°, adjustable |
| Materials | |
|---|---|
| Cassette | High-quality aluminium profile 6063-T5 |
| Arm cables | Stainless steel 304 (plastic-coated) |
| Brackets, hinges | Hot-dip galvanised Q235 carbon steel |
| Fabric material | 280 g AuroWeave™ PU-coated polyester |
| Fade resistance | Level 4 |
| Rust resistant | Yes |
| Fabric | |
|---|---|
| UV protection | UPF 50+ (blocks over 98% of harmful UV rays) |
| UV test duration | 400-hour Xenon Arc test |
| Fabric warranty | 2 years (AuroWeave™) |
| Performance | |
|---|---|
| Lifespan | 20 years of standard use |
| Speed | 60 seconds full open/close cycle |
| Wind resistance | Class 2 (29-38 km/h) |
| Rain resistance | EN 20811 |
| Weather sensing | Optional wind sensor for automatic retraction |
| Lighting | |
|---|---|
| Integrated | LED strip (DC24V COB, 320 D/m) |
| Dimmable | Yes |
| Max lumens | ~430 lumens/m |
| Colour temperature | 3000K - warm white |
| Operation | Remote control included |
| Electrical | |
|---|---|
| Power requirement | 230V / 50Hz |
| Plug type | Type G |
| Cable exit point | Left (facing house wall) |
| Cable length | 7.5 m |
| Weather rating | IPX4 |
| Delivery | |
|---|---|
| Shipping | Free shipping on all orders |
| Number of packages | 2 (1x awning pre-assembled, 1x mounting bracket set) |
| Product weight | 2.0–4.0 m: 30–67 kg (2 people) 5.0–6.0 m: 72–88 kg (3 people) Bracket carton: +5–12 kg |
| Installation | |
|---|---|
| Difficulty | Beginner-friendly |
| Installation time | 1 hour |
| Recommended crew size | 2-3 |
| Tools/hardware included | Wall or ceiling brackets are included. Fixings and spacers are not included. |
| Tools required | Drill, drill bit suited to the wall type, spanner (19 mm for M12, 17 mm for M10), 6 mm and 5 mm hex/Allen keys, spirit level, 2 ladders, tape measure. Max fastener size: M12, minimum: M10 (washer required). |
| Professional installation | Optional |
| Surface restrictions | Plasterboard/drywall (wall or ceiling): do not mount directly. No load-bearing capacity. If drywall is present, locate the structural stud or joist behind it and fix into that. |
| Warranty | |
|---|---|
| Warranty term | Component-based / 10-year cassette |
| Warranty coverage | Aluminium cassette - 10 years Motor - 5 years Arms/mechanism - 5 years Fabric (AuroWeave™) - 2 years Electronics - 2 years |
Keep your outdoor space 10°C cooler and glowing on-demand after sunset
-

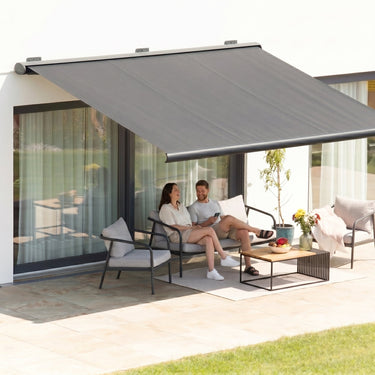

Take your outdoor space back from the sun. Most patios and balconies are simply unusable on summer afternoons. With a PERGOLUX awning, you stay protected from heat and UV rays — morning coffee outside, work calls from the patio, lunch without squinting.
-

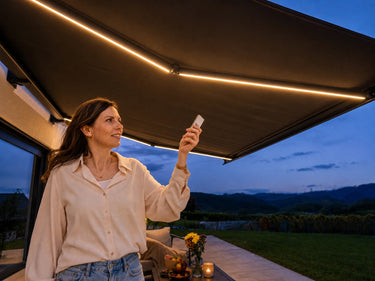

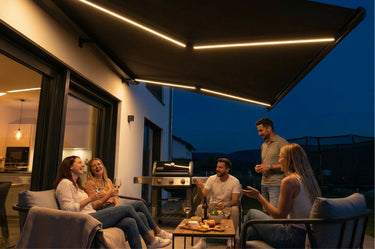

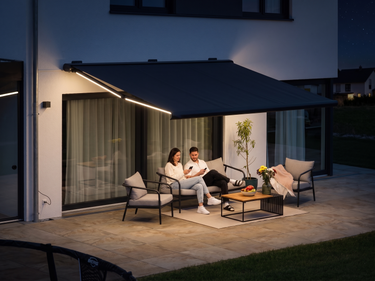

Your evenings, your terms. When the sun goes down, the LED strips built into the awning's arms take over. Your outdoor space turns into a lounge — no extension cords, no string lights, no cable mess. The evening doesn't end at 9 PM anymore.
-
UPF 50+ Thermal Shade for Hot Afternoons. Made from 280g PU-coated polyester that blocks 98% of UV rays, reducing temperatures underneath by up to 10°C so your patio stays usable through peak sun. Lab-aged 400 hours under Xenon-Arc radiation, meaning the fabric won't fade, crack or lose UV protection over time like untreated fabrics.
-
Blocks even low-lying sun thanks to the adjustable tilt angle. With the manual 5°–25° tilt adjustment, you can easily create shade even with low sun, using an Allen key/hex key.
-
Reduce Indoor Heat and Glare. When installed over sliding doors or large window, awnings shade glass surfaces directly to keep interior rooms cooler and reduces glare, allowing blinds to stay open, no reason to shut the blinds just because the sun's finally out.
-
Work Outside Without Screen Glare or Sweat. The 280g high-density polyester eliminates direct glare on laptop and phone screens. UPF 50+ protection helps prevent devices from overheating in direct sun, letting you work outdoors without squinting or relocating.
A sealed aluminium casing, hidden hardware, quiet coated cables and built-in dimmable LEDs create a cleaner look from day to night.
-
No Visible Screws, Bolts, or Fixings. The PERGOLUX cassette uses concealed hardware throughout, giving a cleaner facade and fewer weak points where rust can take hold over time.
-
Whisper-Quiet Operation. A quiet motor glides the awning smoothly in and out. The 304 stainless steel arm cables are wrapped in a protective plastic coating, acting as a permanent silent buffer that eliminates grinding or squeaking — no re-greasing, ever.
-
Dimmable LED Strips Built Into Arms. Chip-on-board LEDs produce smoother, continuous bands of natural white light compared to the dotted look of cheap LED strips. Dimmable with included remote and powered through the awning without a second outlet or professional wiring.
-
Tested for 20+ Years of Regular Use. Lab-tested for 3,000 open-close cycles, offering 20+ years of enjoyment at the average 150 uses per year, with integrated motor protection to prevent overheating and provide consistent smooth performance over time.
-
PU Coating Blocks Mould. Mould is the top reason awnings get replaced. Our PU-coated poly shades repel water while allowing fabric to breathe when rolled up, keeping moisture from trapping between layers and making debris easy to wipe off the surface.
-
Sealed Cassette Keeps Stored Fabric Dry. The 6063-T5 full-cassette housing seals rolled fabric, motor & arms from weather exposure when retracted, letting you store all winter or during rainy seasons then return to use without dealing with mould, covers or cleaning.
-

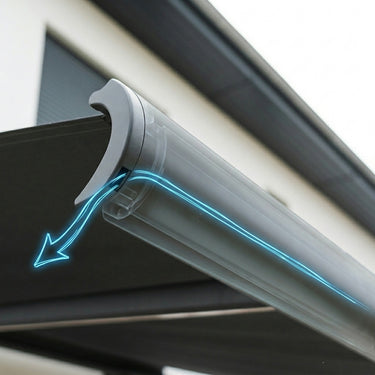

Integrated Gutter Prevents Water Pooling. A calibrated 5° pitch uses gravity to direct rainwater to an integrated front gutter, releasing it through drainage points on both sides of the front profile, eliminating standing water that causes pooling, sagging, and mould.
-
Three Rust-Proof Materials, Zero Weak Joints. Most awnings fail from rust in the hidden joints. We use 6063-T5 aluminium for the structure, hot-dip galvanized Q235 steel for brackets and hinges, and 304 stainless steel for internal cables. Designed to prevent corrosion from salt air, heavy rain, or coastal humidity.
-
No Sagging or Brittle Fabrics. Our shade fabric is stress-tested for 400+ hours under concentrated UV radiation that simulates years of harsh outdoor exposure, able to hold shape and tension even in climates with intense sun exposure.
-
No screeching - even after years. Our 304 stainless steel cables are encased in a permanent protective sleeve that eliminates metal contact, while hot-dipped galvanized hinges resist rust, meaning no screeching or grinding sounds when awning opens or closes.
-
Fade Resistance, Even With Intense Sun. AuroWeave™ shade fabric has Level 4 Colour Fastness (ISO 105) that won't fade like lesser fabrics. Full-cassette storage shields fabric from UV when retracted, extending colour life even further.
Open or close by remote, rinse clean, and skip the electrician with easy install and optional auto-retract.
-
Remote Controlled with Extended Range. High-torque RF motor extends and retracts the awning at the touch of a button, with no manual cranking or effort. Operate it from inside your house or across the yard with extended 20m range.
-

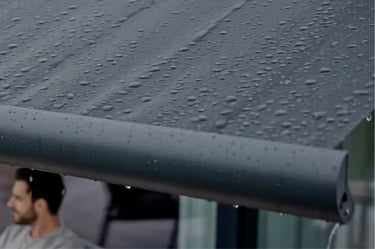

Stay Outside Through Light Rain. The tightly woven 280g polyester fabric with PU coating repels water efficiently enough to stay outside through a drizzle, and breathes to allow moisture evaporation when rolled up.
-
Rinse-Clean Fabric with Non-Stick Coating. The PU coating creates a smooth surface barrier that prevents dirt, pollen, and debris from soaking into the fabric fibers, easily rinsed away with a garden hose for low-maintenance cleaning.
-

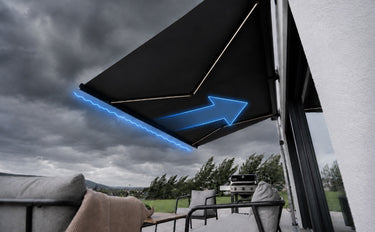

Optional Wind Sensor with Auto-Retract. Discreet sensor detects vibrations from strong wind and automatically sends a retract command to the motor — no rushing home when the weather changes. No drilling, no wiring, just clip it on. Sold separately.
-
Two-Person DIY Install, No Electrician. Designed for 2 people to install in 1 hour with standard tools. Plugs into a regular outlet; no hardwiring or licensed electrician required. Chat, phone, and video call support 7 days per week.
-

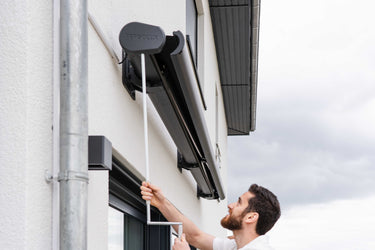

Emergency crank included — never left without control. If the power goes out, your awning still opens or closes. Just attach the crank and operate it by hand — no motor needed, no risk.
20+ years of engineering experience, direct-to-consumer pricing, and zero compromises. That's the PERGOLUX standard, now in our awning too.
Exceptional value for money is part of our DNA. By designing smarter, manufacturing at scale, and selling directly to homeowners, we deliver premium outdoor products with exceptional quality and value.
So easy, even LEGO would be jealous. Skip the installer with logical, completely stress-free DIY assembly. With two people, your PERGOLUX Awning can be installed in around an hour, so you can start enjoying your outdoor space sooner.
Looking for professional installation? Our trusted installation partners operate across all of Mainland UK. Contact us to check availability or just select it as an add-on in the awning configurator.
After purchase, our installation partner will reach out to schedule a time with you.
Yes — PERGOLUX awnings are designed with DIY installation in mind - this is at the core of our DNA. If you have 1–2 people to help with lifting and positioning, you can complete the installation yourself by following the step-by-step guides, video tutorials, and the PERGOLUX app. Looking for professional installation? Our trusted installation partners operate across all of Mainland UK. Contact us to check availability.
Most installations are completed in under an hour. The process covers measuring and marking the wall, mounting the wall brackets, lifting the cassette into place, and plugging in the power cable. No specialist tools or trade skills are required.
You do not need a professional workshop. The standard toolkit is:
2 sturdy A-frame ladders
A drill (rotary for hollow brick, hammer for concrete)
Appropriate masonry drill bits (14mm or 16mm depending on wall type)
Socket wrench or ratchet set
6mm Allen key / hex key
Cartridge / caulking gun (for chemical resin and silicone)
Long spirit level, measuring tape, and pencil
Digital wall scanner (to check for hidden cables and pipes)
We recommend 2 to 3 adults. Drilling and bracket setup can be managed by one person, but lifting the cassette — which weighs between 45kg and 76kg depending on size — safely requires a team.
PERGOLUX provides the heavy-duty wall brackets (designed for M12 bolts), but because every house is built differently, the wall anchors must be purchased separately from your local DIY store. Use the table below to know exactly what to buy based on your awning size and wall material. How many mounting brackets and anchors you need, depends on the width of your awning. For awnings that are 5m wide or wider, the awning comes with 3 mounting brackets and you need 12 anchors. For awnings that are less than 5m wide, the awning comes with 2 mounting brackets and you need 8 anchors.
The fastener depends on your wall material. Here is a quick reference:
Concrete: M12 × 120mm Expansion Bolt
Solid Brick: M12 × 160mm Threaded Rod + Chemical Resin
Sand-Lime Brick: M12 × 160mm Threaded Rod + Chemical Resin
Hollow Masonry: M12 × 160mm Threaded Rod + Resin + Sieve Sleeve
Timber Frame: 12 × 120mm Heavy-Duty Wood Screws
External Insulation (WDVS): M12 Distance Anchor (e.g. 12/110) + Resin
Concrete Ceiling / Overhang: M12 × 110mm Expansion Bolt or Threaded Rod + Resin
Aerated Concrete (Ytong): Engineer review recommended
Yes. If your home has external insulation, your installer will use specialised stand-off fixings designed for insulated walls. These anchors pass through the insulation and are secured into the solid wall behind it, so the awning is supported by the structure of your home, not the insulation itself. This prevents the insulation from being crushed or damaged when installed correctly.
Yes. Hollow brick walls require specialised fixings rather than standard masonry bolts. Depending on your wall construction, your installer will use the appropriate anchoring system to ensure a secure installation without damaging the brickwork.
Three simple steps can save you a lot of hassle. First, look for the obvious signs: electrical cables and plumbing pipes usually run straight up and down, or across from power points, light switches, taps and drains. Second, check your home's plans if you have them. Third, use a wall scanner (easy to buy or hire from most hardware stores) to check where you plan to drill. Spending five minutes checking now can save you from a costly mistake later.
For the best clearance and shade, we recommend installing your awning around 2.6–3.0m above ground level. This provides plenty of headroom while allowing the awning to extend at the correct angle. Your installer will position it to suit your home and ensure doors and windows can still open freely.

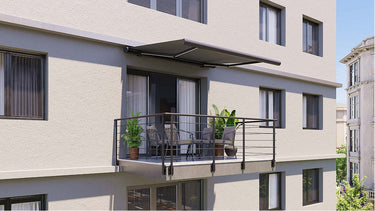

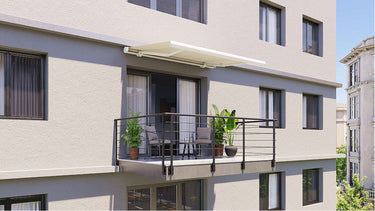

Yes. PERGOLUX awnings can be installed on either a wall or a ceiling, provided the mounting surface is structurally sound. Concrete, solid brick and structural timber are all suitable when installed with the correct fixings. Your installer will determine the best mounting option for your home.
Yes. The pitch can be adjusted both during installation and afterwards. This lets you fine-tune the amount of shade, improve water runoff during light rain, or adapt the angle as the sun changes throughout the year.
No. PERGOLUX awnings are plug-and-play and come with a long power cable that plugs straight into a standard outdoor power point. No hardwiring is required for a typical installation.
Yes. PERGOLUX awnings are engineered for outdoor use and are weather protected. We recommend plugging the awning into a weatherproof outdoor power point, just as you would with any outdoor appliance.
No worries. Every PERGOLUX awning includes a manual crank, so you can still open or close it if there's a power outage.

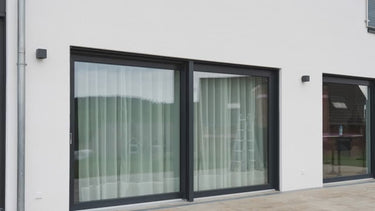

Not if it's installed properly. The cable can be routed neatly along brickwork or hidden inside slim, paintable cable conduit, making it blend in with your home.

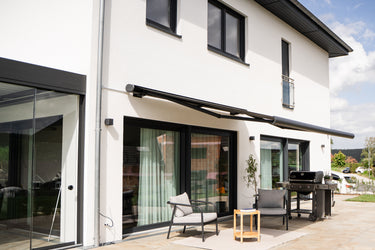

See a real example here:
No. The full-cassette design completely encloses the fabric and arms when retracted, protecting them from dirt, rain and the elements. Simply close it when you're finished, and it's ready whenever you need it again.
PERGOLUX awnings are certified to Wind Resistance Class 2, meaning they are structurally tested to remain stable in normal residential winds up to 38 km/h. PERGOLUX awnings are tested for normal residential wind conditions. If strong winds are forecast, we recommend retracting the awning. For extra peace of mind, you can also add an optional wind sensor that automatically closes the awning if conditions become too windy.
Yes. The 280 g/m² polyester fabric with PU coating efficiently repels water, meaning light rain will not disrupt your plans. During heavy rain or storms, we recommend retracting the awning to prevent water from pooling on the fabric.
No. When retracted, the fabric and arms are fully enclosed inside the aluminium cassette, helping keep everything secure and quiet.
PERGOLUX AuroWeave™ fabric is specifically engineered to resist mould. The PU-treated surface is water-repellent yet breathable, which prevents moisture from being trapped between layers when the fabric is rolled up. The non-stick surface finish stops pollen and organic matter from embedding in the fibres, the main food source for mould, meaning a simple rinse with a garden hose keeps the fabric clean. The full-cassette enclosure adds a further layer of protection by shielding the rolled fabric from damp conditions all winter.
PERGOLUX AuroWeave™ polyester undergoes 400 hours of laboratory Xenon-arc UV testing, equivalent to several years of harsh outdoor exposure. It achieves Level 4 color fastness, while most awnings only reach Level 2 or 3. In practice this means consistent colour across the entire surface with no uneven fading. The full-cassette housing also shields the fabric from UV whenever the awning is retracted, dramatically extending its visual life compared to open-system awnings.

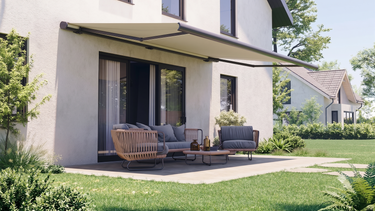

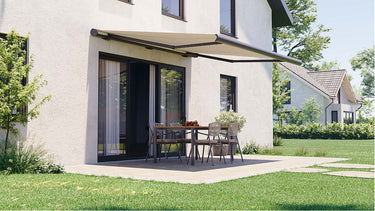

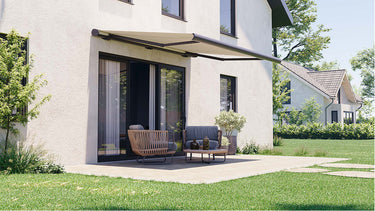

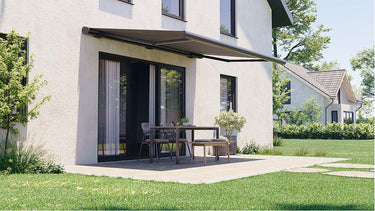

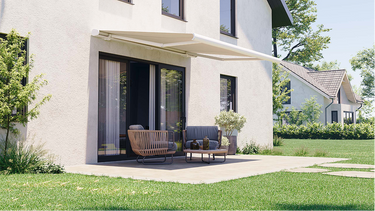

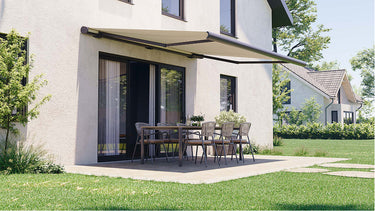

Think about the area you'd like to shade, not just the wall you're mounting it to. We generally recommend choosing an awning that extends slightly beyond your main outdoor seating area, giving you comfortable shade throughout the day as the sun moves.

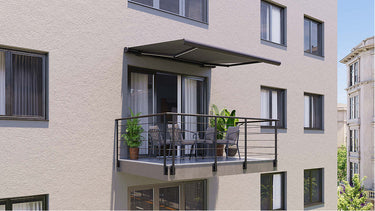

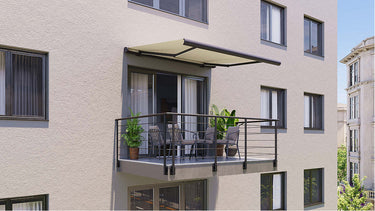

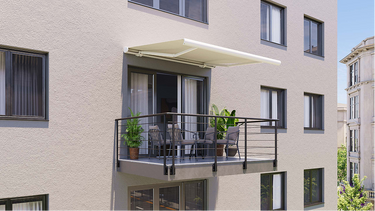

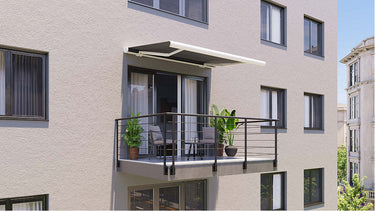

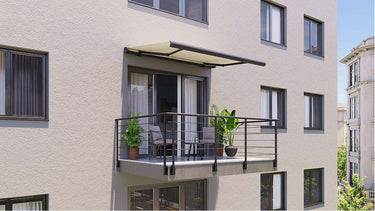

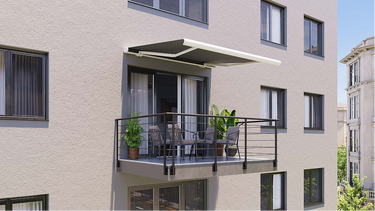

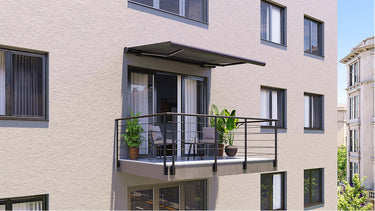

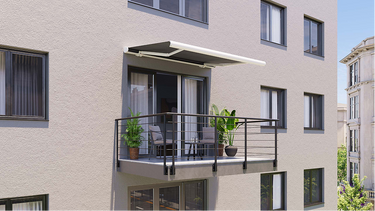

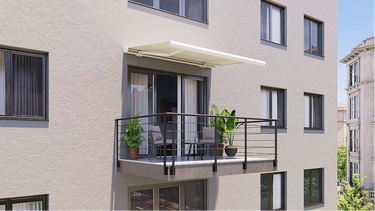

Choose a width that fits comfortably within your balcony, leaving a little clearance at each end. Your awning should also extend without projecting beyond the balcony edge.
PERGOLUX awnings are built to last and backed by our warranty:
10-year warranty on the structural frame and mounting brackets
5-year warranty on the motor and moving components
2-year warranty on the fabric, controls, electronics and accessories
PERGOLUX awnings are designed to be repairable, not replaced.
The motor can be replaced without replacing the entire awning. In the meantime, you can still operate the awning manually using the supplied hand crank.
For private homes, a standard awning installation typically does not require a building permit. If you live in an apartment building, a property governed by a building management company, or a rental home, you may need approval before modifying the exterior facade.
